TEC, Single Phase, TCC Worm Gearmotor, 1.5kW, 15 to 1

TEC Worm Gearmotor, 1.5kW

More Information
£343.14 £285.95

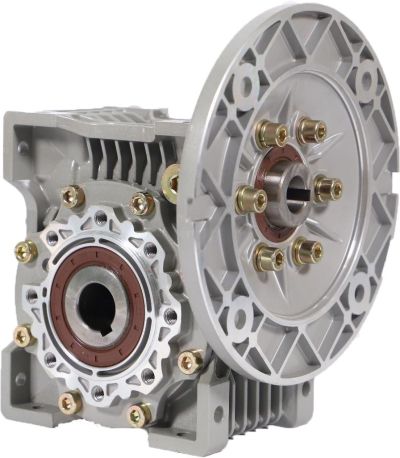

TEC TCC, 1.5kW, 4 pole, 90 frame, B3 mount, 1 phase motor coupled to an TCNDK63, worm reduction gearbox.

Other gearbox ratios available on request.

Power kW 1.5kW
Input Phases 1 phase
Poles 4
Frame Size 90/63
Encl Rating IP55
Weight 24.000000
Duty S1
Output Speed 93.3rpm
Ratio 15 to 1
Approvals CE
Model No TECWG-1-1.5-15
Mounting Type B3
Frame Material Aluminium
Output Bore Dia 25mm
Output Torque 122.8Nm
Service Factor 1.07
Efficiency 73% motor
Max Temp 40 DegC
Current 200V 9.61A
Slip Speed 1400rpm
Inverter Rated no
