4kW 400V 3 Phase Swift Start LITE

Model Number

SSL0400EN400V

Generally a stocked item but please contact us for availability on + 44 (0)1686 688948

More Information

£918.40 £765.33

Details

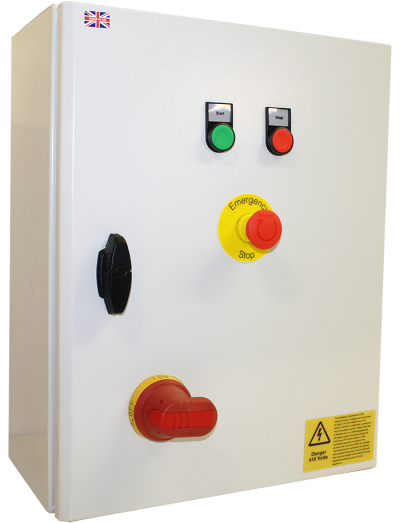

4kW, 400V Three Phase Input, 400V Three Phase Output Enclosed Inverter Drive.

500mm x 400mm x 250mm Powder coated steel enclosure contains the following:

Door Interlocked Isolator
MCB Protection (Power and Control)

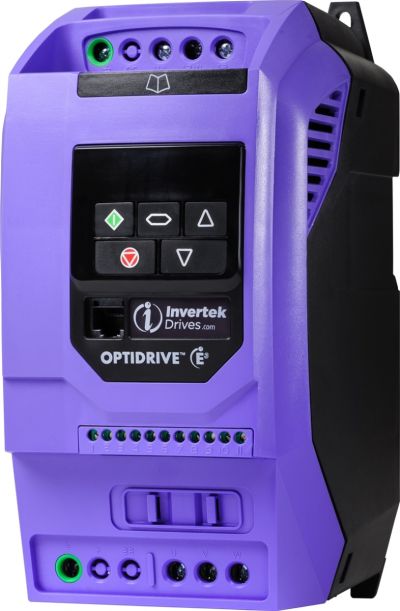

3 Phase 4kW Invertek E3 Inverter
Green Start Pushbutton
Red Stop Pushbutton
Fan and Filter
Thermostat
Tri rated cable
Terminals for Motor Connections
Drawings Supplied
IP 54 rating

Supply required: 415VAC + N + E

Availability – Generally a stocked item but please contact us for availability

Specifications:

When start button is pressed, the inverter will start and ramp up to the speed set in parameter P00.16

When stop button is pressed, the inverter will ramp to a stop.

Enclosed VSD Lite

View our range of enclosed Variable Speed Drives (VSDs) that are designed to enhance the way you control and manage your electric motors. These fully enclosed VSD units offer a combination of convenience, efficiency, and reliability.

With a robust and compact design, our enclosed VSDs are a perfect fit for a wide range of industrial applications. They provide seamless control for your electric motors, ensuring smooth and precise speed adjustments, soft starts, and soft stops. Whether you're looking to enhance the performance of your machinery, optimize energy consumption, or reduce maintenance costs, our enclosed VSDs are your solution.

Also referred to as an enclosed drive, enclosed VFD, enclosed VSD, inverter panel, drive panel, VFD panel, VSD panel or variable speed panel, this compact enclosed VFD panel provides smooth acceleration and deceleration, adjustable motor speed and directional control, making it ideal for use as a pump panel, fan panel, conveyor panel or general purpose motor control panel.

Standard model generally kept in stock.

Please call ahead for lead times regarding options and modifications (such as addition of fwd/rev switch, addition of speed potentiometer etc)

If this isn't what you were looking for, we also make custom control panels to meet any requirements. Give us a call on +44 (0)1686 688948 or email us at enquiries@motorcontrolwarehouse.co.uk
