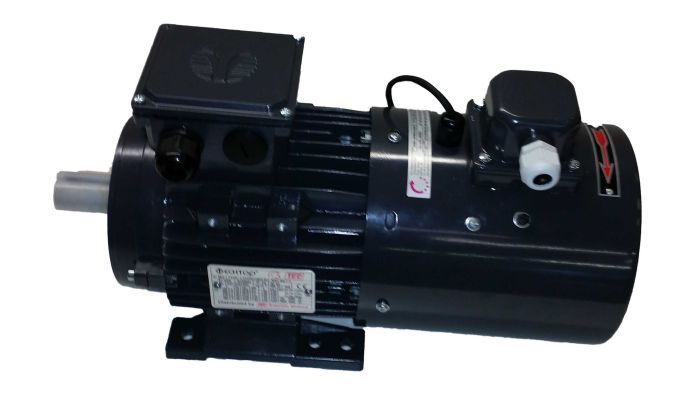

3 Phase Encoder Motor, 22kW, 2 Pole with Force Vent Fan

TECC3, IE3, 3 phase, 22kW, 2 pole, 180M frame encoder motor with force vent fan

£2,317.92 £1,931.60

TECC3, cast iron, 3 phase, 22kW, 2 pole, 180M frame IE3 motor fitted with a 5-30V incremental encoder and 400V 3 phase force vent fan

Encoder connection via 2m screened cable

Please allow 5 working weeks from order to despatch

B3 foot mount as standard

Select B34 foot & face mount or B35 foot & flange mount from the drop down box

Power kW 22

Power HP 30

Input Phases 3

Poles 2

Slip Speed 2850rpm

Frame Size 180M

Model No TECC3-22-2-Enc-FVK

Frame Material Cast Iron

Shaft Diameter 48mm

Current 200V N/A

Current 400V 40.3Amps

Weight 154.000000

Width 340mm

Depth 818mm

Height 440mm

Input Volts Delta 400V

Input Volts Star 690V

Encl Rating IP55

Efficiency 89.8%

Duty S1

Mounting Type B3

Input Freq 50 / 60Hz

Max Temp 40 Deg C

Inverter Rated Yes

Approvals CE
