Invertek ODE-3-140041-3F1Y Optidrive E3 (Replaced by ODE-3-140041-3F1B)

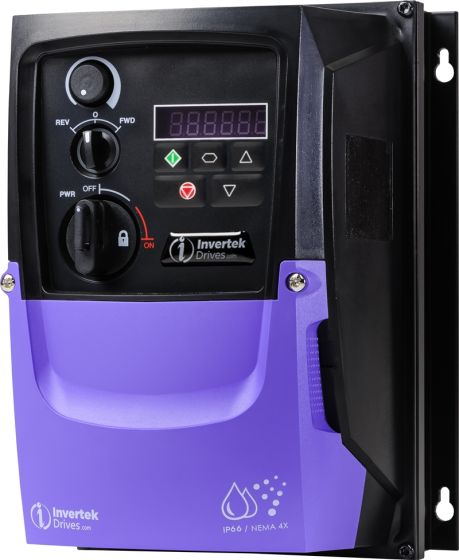

Invertek inverter drive, ODE-3-140041-3F1Y, ODE-3, IP66 Switched, 1.5kW, 400V three phase input, 400V three phase output, 4.1A output, internal EMC filter, Optidrive E3. Replaced by ODE-3-140041-3F1B

More Information

£345.48 £287.90

Details

Invertek ODE-3-140041-3F1Y, E3, 1.5kW, IP66 Switched, 400V three phase input, 400V three phase output inverter, 4.1A output, internal EMC filter. On-board isolator, speed potentiometer and Forward-Stop-Reverse switch. Ideal for wall mounting in damp and dusty environments, indoor use only. Robust and easy to use. 14 parameters for basic setup. Here is a link to the Invertek website: http://www.invertekdrives.com

Please see our Knowledge Base section of the website for further technical & set up information for the Optidrive E3

We don't have any of the ODE-3-140041-3F1Y drives in stock.

We are replacing the ODE-3-140041-3F1Y 'Indoor rated' with the ODE-3-140041-3F1B 'Outdoor rated' inverter. See link below:

https://www.motorcontrolwarehouse.co.uk/invertek-ode-3-140041-3f4b-optidrive-e3-outdoor-use.html

Downloads

Power kW 1.5kW

Power HP 2HP

Input Voltage 415V

Output Voltage 0 to 400V

Input Phases 3

Output Phases 3

Output Current 4.1Amps

Input Current 5.6Amps

Encl Rating IP66 Switched

Width 161mm

Height 232mm

Depth 179mm

Frame Size 1

Overload 150%

Duty Heavy

Dynamic Braking No

Weight 3.100000

Control Type Simple vector or V/f mode

Input Freq 48-62Hz

Output Freq 0-500Hz

Max Temp 40 deg C

Digital Inputs 4

Digital Outputs 1

Analogue I/Ps 2

Analogue O/Ps 1

Output relay(s) 1

Serial Comms Modbus RTU & CANOpen

Approvals UL, cUL, C- Tick, ROHS
