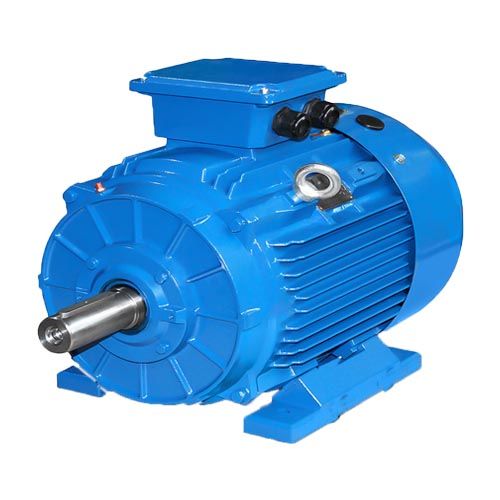

TEC Spartan, 3 Phase, 2.2kW, 2 pole, IE3 Premium Robust Motor

£263.04 £219.20

T3C, Cast Iron frame, 3 phase, 2.2kW, 2 pole, 90L1 frame, IE3 motor

B3 foot mount as standard

Select B34 foot & face mount or B35 foot & flange mount from the drop down box

See brochure in downloads section for full specification

NOTE: The length of the newer IE3 motor may be longer than the older IE1/IE2 motor. Please check that you have no size constraints.

Power kW 2.2

Power HP 3

Input Phases 3

Poles 2

Slip Speed 2880rpm

Frame Size 90L1

Model No T3C-90L1-2

Frame Material Cast Iron

Shaft Diameter 24mm

Current 200V 7.7Amps

Current 400V 4.45Amps

Weight 25.000000

Width 178mm

Depth 345mm

Height 231mm

Input Volts Delta 200V

Input Volts Star 400V

Encl Rating IP55

Efficiency IE3

Duty S1

Mounting Type B3

Input Freq 50 / 60Hz

Max Temp 40 Deg C

Inverter Rated Yes

Approvals CE, WIMES 3.03 Compliant
