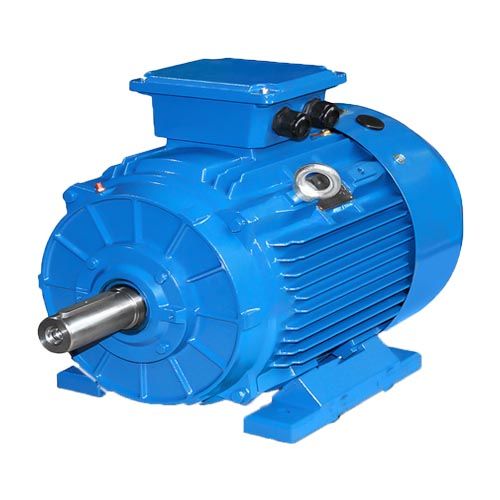

TEC Spartan, 3 Phase, 2.2kW, 2 pole, 90L Frame, IE3 Premium WIMES Compliant Motor

TEC Spartan, 3 Phase, 2.2kW, 2 pole, 90L frame, IE3 Premium Efficiency WIMES Compliant Motor

B3 foot mount as standard

Select B34 foot & face mount or B35 foot & flange mount from the drop down box

See brochure in downloads section for full specification

NOTE:  The length of the newer IE3 motor may be longer than the older IE1/IE2 motor.  Please check that you have no size constraints.

WIMES Compliant Motors

 The Water Industry Mechanical & Electrical Specification (WIMES) 3.03, updated to issue 8, establishes the essential requirements for low-voltage electric motors in the UK Water Industry. These guidelines ensure that motors deliver the reliability, efficiency, and durability necessary to support critical infrastructure while driving down energy consumption and ownership costs.

Key Features of the Spartan Motor Range

 Durability

·        C3 Medium (RAL5010) Paint Finish for corrosion protection

·        IP55 protection

·        M8 tapped holes for vibration sensing

·        Cast iron terminal boxes (80 frame and above)

·        Cast iron fan cover (225 frame and above)

·        Aluminium fan 315/355 frame

·        Stainless steel nameplate and fixings

·        Cooling method: TEFC (Totally Enclosed Fan Cooled) – IC411

·        2-Year Warranty

Mechanical Reliability

·        Located drive end bearing on all models

·        80-132 Frame with NSK sealed for life metal shielded (ZZ) bearings

·        Regreasing points for 160 frame and above

·        Spring oil seal at both ends with flinger disc at drive end for additional ingress protection

·        SKF insulated NDE bearing at non drive-end for 280 frame and above (to protect against circulating shaft currents)

·        Shaft grounding for 315 frame and above

Winding Protection

·        Thermal protection: PTC thermistors, RTD’s (PT100) – 200kW and above

·        Anti-condensation heaters (with warning label and connection diagram)

·        Tropicalised finish

Electrical Protection

Internal and external earth points

Energy Efficient Winding Design

·        IE3 Efficiency (0.75 to 55kW)

·        IE4 Efficiency (75 to 200kW)

·        Class F insulation (Rise B)

·        VPI Vacuum Pressure Impregnated

Flexible Connectivity

·        Auxiliary terminal box for Thermal Protection Heater connection (160 frame and above)

·        LHS/RHS terminal box optional
