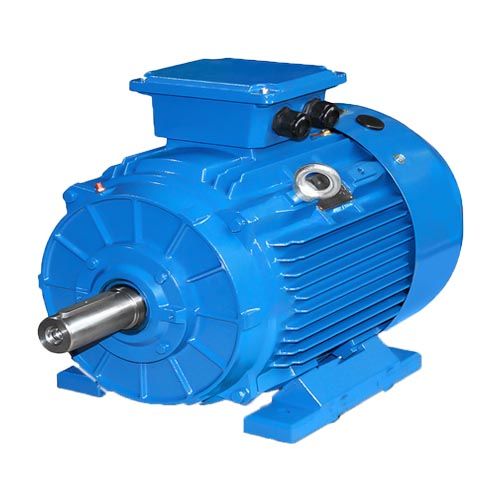

TEC Spartan, 3 Phase, 22kW, 2 pole, IE3 Premium Robust Motor

£1,466.76 £1,222.30

T3C, Cast Iron frame, 3 phase, 22kW, 2 pole, 180M frame, IE3 motor

B3 foot mount as standard

Select B34 foot & face mount or B35 foot & flange mount from the drop down box

See brochure in downloads section for full specification

NOTE: The length of the newer IE3 motor may be longer than the older IE1/IE2 motor. Please check that you have no size constraints.

Power kW 22

Power HP 30

Input Phases 3

Poles 2

Slip Speed 2945rpm

Frame Size 180M

Model No T3C-180M-2

Frame Material Cast Iron

Shaft Diameter 48mm

Current 200V N/A

Current 400V 38.5Amps

Weight 184.000000

Width 354mm

Depth 687mm

Height 445mm

Input Volts Delta 400V

Input Volts Star 690V

Encl Rating IP55

Efficiency IE3

Duty S1

Mounting Type B3

Input Freq 50 / 60Hz

Max Temp 40 Deg C

Inverter Rated Yes

Approvals CE, WIMES 3.03 Compliant
